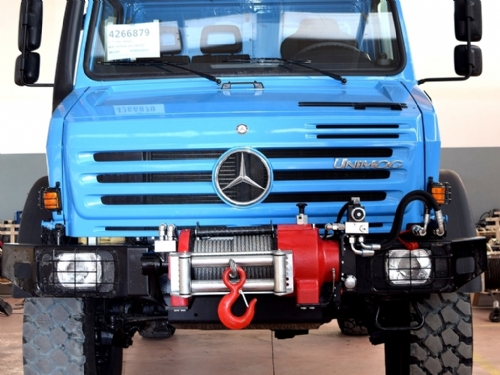

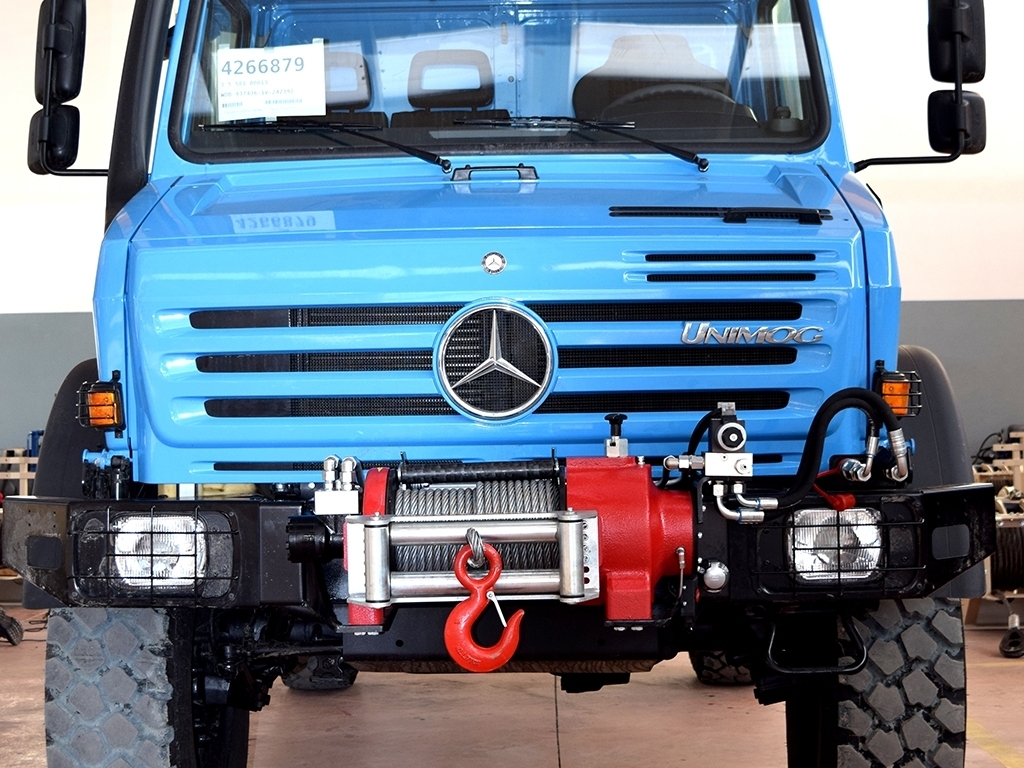

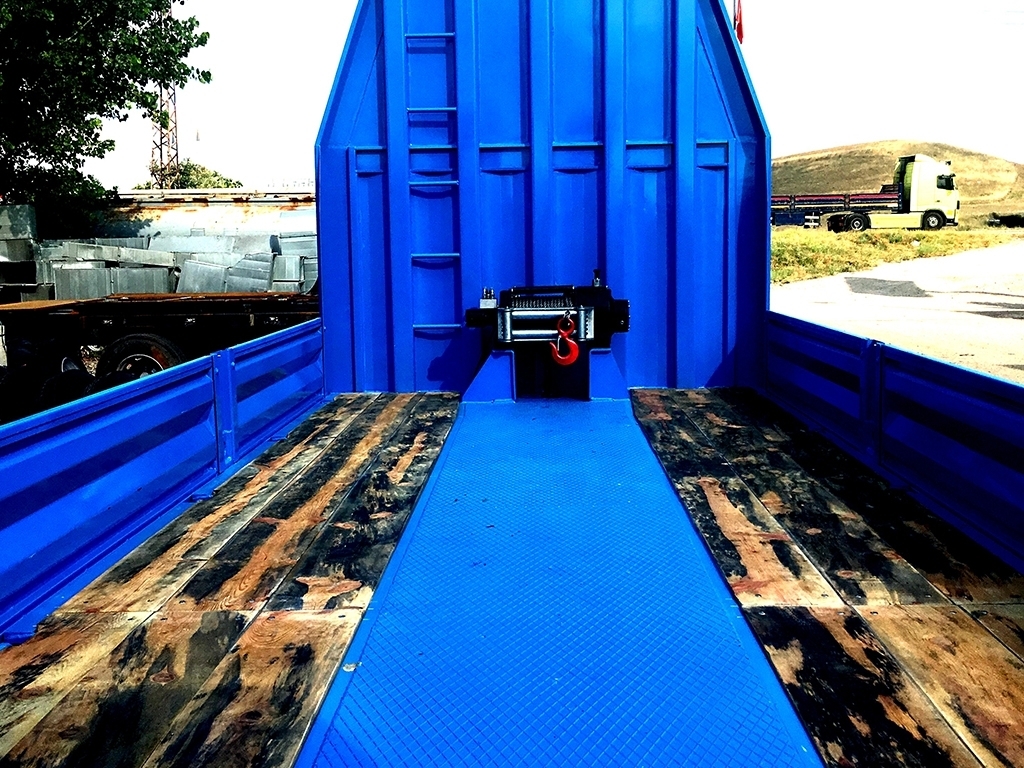

HMW 10.0 PHT Winch

HMW 10.0 PHT Winch

The HMW 10.0 PHT winch is a powerful and reliable tool designed for heavy-duty lifting, pulling, and hauling in a variety of industries. This winch is built with high-quality components and advanced features that make it an efficient and safe choice for a wide range of applications.

Technical Specifications

The HMW 10.0 PHT winch has a maximum line pull capacity of 10,000 kg. It is powered by a hydraulic motor that operates at a maximum pressure of 3,000 PSI (207 bar). The winch also has a maximum flow rate of 8 gallons per minute (30 liters per minute), which ensures efficient operation.

The winch drum is made of high-strength steel and measures 5.5 inches (139.7 millimeters) in diameter and 10.25 inches (260.4 millimeters) in length. It is designed to accommodate up to 150 feet (45.7 meters) of 3/8-inch (9.5 millimeters) wire rope.

Standard

  • Roller Fairlead
  • Cable Tensioner
  • Manual Clutch

Hydraulic Inlets

  • G 1/2″

Optional

  • Air Clutch
  • IP67 – IP 68
  • Pneumatic

Mounting Bolts

  • 16 Pieces M16 8,8

General

Max. pulling capacity (kg/Ibs): 10000 kg (22040 Ibs)
Max. rope length (m/ft): 51.3 m (168.2 ft)
Recommended wire rope (mm/in): 16 mm (7/11″) 1960 Mpa
Hydromotor (cc/in³): 160cc (10 in³)
Max. pump flow (L/min-g/min): 60 L (15.8 g)
Gear ratio: 28:1
Oil types and capactiy: 85 W 90 – 2 L
Max. working pressure (bar/psi): 145 bar (2103 psi)
Winch (kg/Ibs): 184 kg (405 Ibs)
Roller Fairlead (kg/lbs): 18 kg (39,6 lbs)
Cable Tensioner (kg/Ibs): 8 kg (17,6 lbs)

PN HMW 10.0 PHT-N Manuel Clutch Shifter

PN HMW 10.0 PHT/P-N Air Clutch Shifter

Technical Features

Winch Features

Rope Winding Layer Pulling Capacity (kg/lbs) Rope Speed (m/min-ft/min) Rope Lenght (m/ft)
1 10000/22040 6.3/20.6 10.2/33.5
2 8502/18739 7.4/24.2 21.9/71.8
3 7394/16298 8.5/27.9 35.8/117.4
EN 4 6542/14420 9.6/31.5 51.3/168.2

Pulling Capacity kg/lb Rope Speed m/min-ft/min Rope Lenght m/ft

Technical Document

  • Extra reinforced steel cast body.
  • Lightweight and strong design.
  • 100% Holding negative-acting hydraulic brake system.
  • Standard pressure roller and roller fairlead.
  • Easy assembly, high rope capacity and high torque hydromotor
  • Standard manual rope unloading system
  • CE Machinery Directive 2006/42/EC
  • Meets SAE J706 rating
