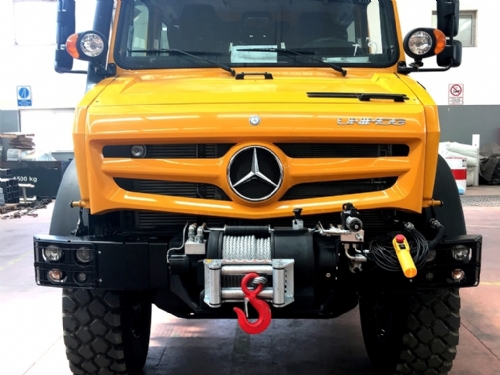

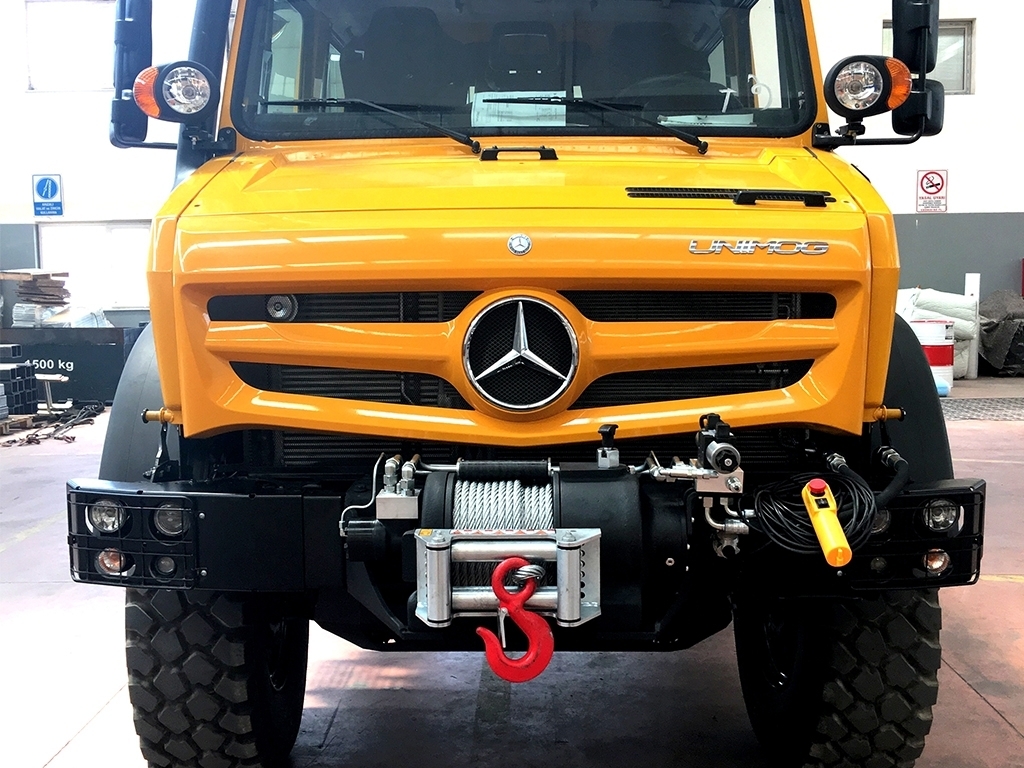

HMW 12.0 PHT – K Winch

HMW 12.0 PHT – K Winch ; Hammerwinch, a trusted name in the winching industry, continues to deliver exceptional products that meet the demands of professionals. Among their impressive lineup, the HMW 12.0 PHT – K Winch stands out as a powerful and reliable winching solution designed to handle the toughest tasks with precision and efficiency. With its impressive pulling capacity, advanced features, and durable construction, this winch is a game-changer in various industries and applications.Powerful Pulling Capacity:The HMW 12.0 PHT – K Winch is built to handle heavy loads effortlessly. With a pulling capacity of 12,000 pounds (5,443 kilograms), it tackles even the most demanding tasks with ease. Whether you’re involved in recovery operations, off-road adventures, or industrial applications, this winch is equipped to handle the challenges you face.

Standard

Roller Fairlead
Cable Tensioner
Manual Clutch

Hydraulic Inlets

G 1/2″

Optional

Air Clutch
IP67 – IP 68
Pneumatic

Mounting Bolts

16 Pieces M16 8,8

Categories:Medium Series Winches, SAE Series Winches

General

Max. pulling capacity (kg/Ibs):	12000 kg (26450 Ibs)
Max. rope length (m/ft):	33 m (108.2 ft)
Recommended wire rope (mm/in):	16 mm (7/11″) 1960Mpa
Hydromotor (cc/in³):	200cc (12 in³)
Max. pump flow (L/min-g/min):	60 L/min (15.8 g/min)
Gear ratio:	28:1
Oil types and capactiy:	85 W 90 – 2 L
Max. working pressure (bar/psi):	135 bar (1958 psi)
Winch (kg/Ibs):	161 kg (355 Ibs)
Roller Fairlead (kg/lbs):	18 kg (39,6 lbs)
Cable Tensioner (kg/Ibs):	8 kg (17,6 lbs)

HMW 12.0 PHT – K Manuel Clutch Shifter

HMW 12.0 PHT – K/P Air Clutch Shifter

Technical Features

Winch Features

Rope Winding Layer	Pulling Capacity (kg/lbs)	Rope Speed (m/min-ft/min)	Rope Lenght (m/ft)
1	12000/26450	5/16.5	6.3/20.6
2	10203/22489	5.9/19.4	13.8/45.3
3	8874/19560	6.8/22.3	22.7/74.4
4	7852/17306	7.7/25.2	33/108.2

Pulling Capacity kg/lb Rope Speed m/min-ft/min Rope Lenght m/ft

Technical Document

Extra reinforced steel cast body.
Lightweight and strong design.
100% Holding negative-acting hydraulic brake system.
Standard pressure roller and roller fairlead.
Easy assembly, high rope capacity and high torque hydromotor
Standard manual rope unloading system
CE Machinery Directive 2006/42/EC
Meets SAE J706 rating

HMW 12.0 PHT – K Winch

HMW 12.0 PHT – K Winch Technical Drawing
