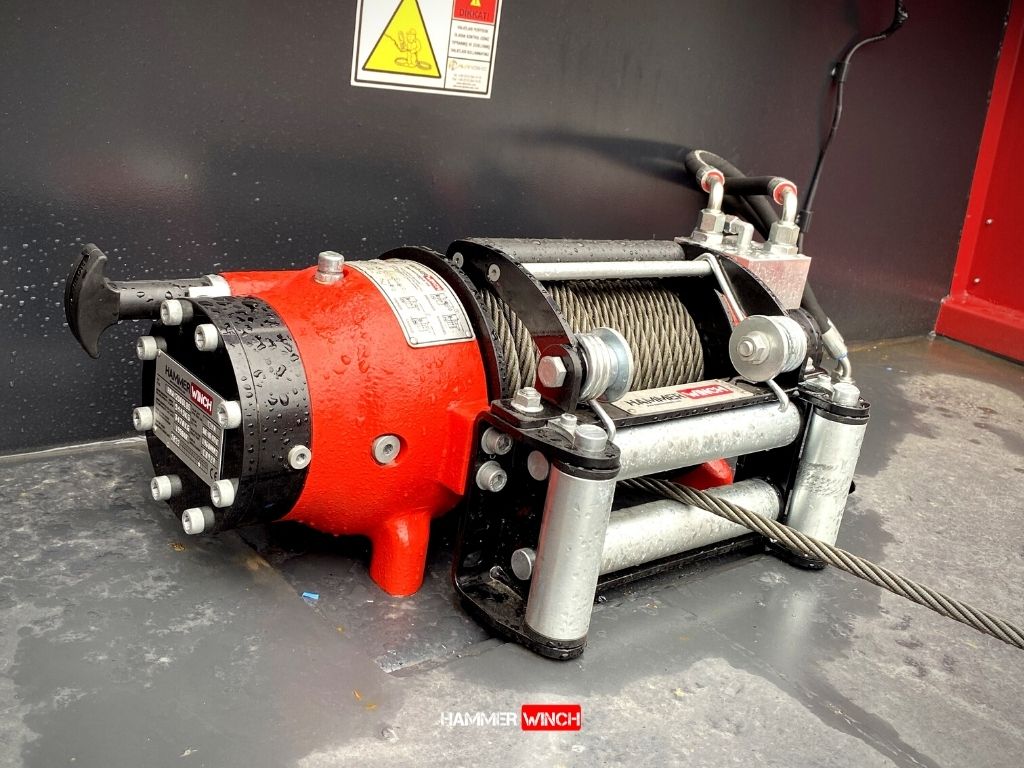

HMW 4.0 PHT – ST Winch

HMW 4.0 PHT – ST Winch

The HMW 4.0 PHT – ST Winch is a heavy-duty winching system designed to provide reliable and efficient pulling power for a wide range of industrial applications. With a maximum line pull capacity of 4,000 kg, this winch is capable of handling even the toughest loads, making it a popular choice for industries such as construction, mining, and oil and gas.

One of the key features of the HMW 4.0 PHT – ST is its robust construction. Built with high-quality materials and components, including a heavy-duty steel frame and stainless steel drum, the winch is able to withstand the harsh conditions often found in industrial environments. It is also designed for ease of maintenance, with accessible components and a simple, user-friendly interface.



Standard

  • Roller Fairlead
  • Cable Tensioner
  • Manual Clutch

Hydraulic Inlets

  • G 1/2″

Optional

  • Air Clutch
  • IP67 – IP 68

Mounting Bolts

  • 8 Pieces M14 8,8

General

Max. pulling capacity (kg/Ibs): 4000 kg (8816 Ibs)
Max. rope length (m/ft): 53.8 m (176 ft)
Recommended wire rope (mm/in): 10mm (3/8”) 1960 Mpa
Hydromotor (cc/in³): 250 cc (15 in³)
Max. pump flow (L/min-g/min): 60 L (15.8 Gal)
Gear ratio: 5,6:1
Oil types and capactiy: 85 W 90-0,75 L
Max. working pressure (bar/psi): 140 Bar (2030 psi)
Winch (kg/Ibs): 60 kg (132 Ibs)
Roller Fairlead (kg/lbs): 6 kg (13,22 lbs)
Cable Tensioner (kg/Ibs): 2,5 kg (5,51 lbs)

HMW 4.0 PHT – ST Manuel Clutch Shifter

HMW 4.0 PHT – ST/P Air Clutch Shifter

Technical Features

Winch Features



Rope Winding Layer Pulling Capacity (kg/lbs) Rope Speed (m/min-ft/min) Rope Lenght (m/ft)
1 4000/8816 14/46 8.4/27.5
2 3445/7594 16/53 17.8/58
3 3024/6666 18/61 28.3/92.8
4 2695/5940 21/69 40.6/133
5 2430/5356 23/76 53.8/176

Pulling Capacity kg/lb Rope Speed m/min-ft/min Rope Lenght m/ft

Technical Document

  • Extra reinforced steel cast body through the heat treatment and industrial design
  • Light and robust design
  • 100% Holding negative-acting hydraulic brake system.
  • Standard pressure roller and roller fairlead.
  • Easy assembly, high rope capacity and high torque hydromotor
  • Standard manual rope unloading system
  • CE Machinery Directive 2006/42/EC
  • Meets SAE J706 rating

HMW 4.0 PHT – ST Winch

HMW 4.0 PHT – ST Winch Technical Drawing
