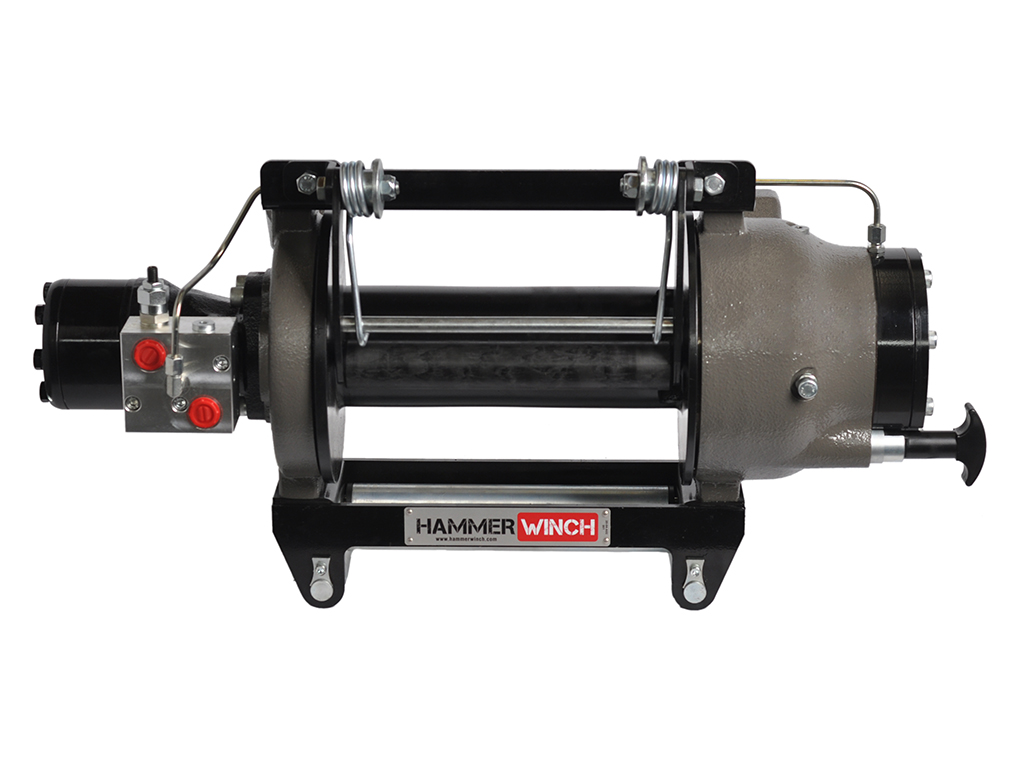

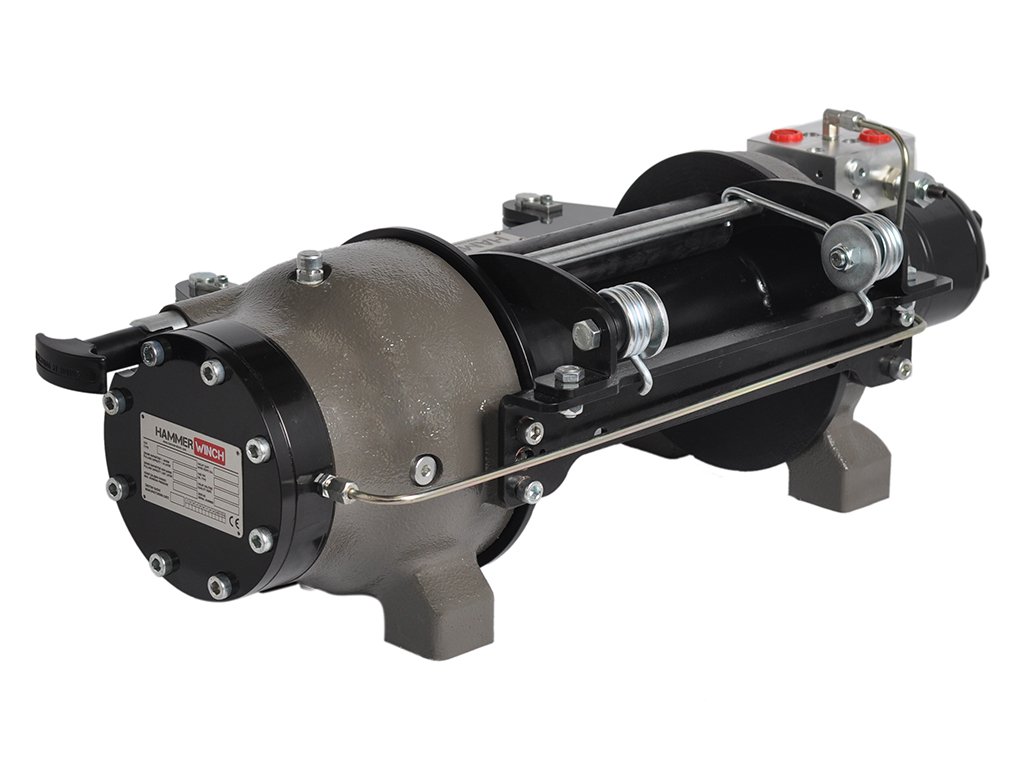

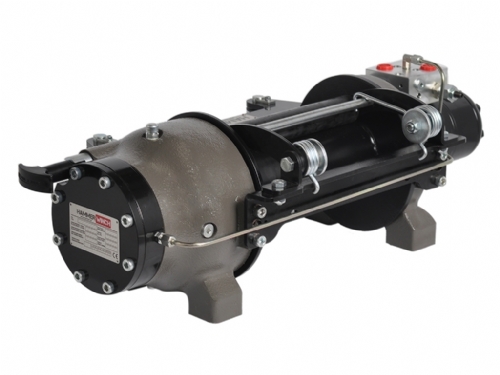

HMW 7.8 PHT – ST Winch

HMW 7.8 PHT – ST Winch

The HMW 7.8 PHT – ST Winch is a powerful and versatile winch designed for heavy-duty applications. With its advanced features and robust construction, this winch is capable of handling even the most demanding tasks with ease. In this article, we will explore the technical features of the HMW 7.8 PHT – ST Winch in detail.

Firstly, let’s take a look at the capacity of this winch. The HMW 7.8 PHT – ST Winch has a maximum line pull of 7.8 metric tons (17,196 lbs), which makes it suitable for a wide range of applications. This winch can be used for lifting heavy loads, pulling vehicles out of mud or snow, and for many other tasks that require a strong and reliable winch.


  • Roller Fairlead
  • Cable Tensioner
  • Manual Clutch

Hydraulic Inlets

  • G 1/2″


  • Air Clutch
  • IP67 – IP 68

Mounting Bolts

  • 16 Pieces M12


Max. pulling capacity (kg/lbs):7800 kg (17196 Ibs)
Max. rope length (m/ft):43 m (141 ft)
Recommended wire rope (mm/in):14 mm (5/9”) 1960 Mpa
Hydromotor (cc/in³):400 cc (24 in³)
Max. pump flow (L/min-g/min):75 L/min (19.8 g/min)
Gear ratio:5,2:1
Oil types and capactiy:85 W 90 – 0,9 L
Max. working pressure (bar/psi):208 bar (3016 psi)
Winch (kg/lbs):102 kg (224.8 Ibs)
Roller Fairlead (kg/lbs):11 kg (24,2 lbs)
Cable Tensioner (kg/lbs):4,5 kg (9,9 lbs)

HMW 7.8 PHT – ST Manuel Clutch Shifter

HMW 7.8 PHT – ST/P Air Clutch Shifter

Technical Features

Winch Features

Rope Winding LayerPulling Capacity (kg/lbs)Rope Speed (m/min-ft/min)Rope Lenght (m/ft)

Pulling Capacity kg/lb Rope Speed m/min-ft/min Rope Lenght m/ft

Technical Document

  • Extra reinforced steel cast body through the heat treatment and industrial design
  • Light and robust design
  • 100% Holding negative-acting hydraulic brake system.
  • Standard pressure roller and roller fairlead.
  • Easy assembly, high rope capacity and high torque hydromotor
  • Standard manual rope unloading system
  • CE Machinery Directive 2006/42/EC
  • Meets SAE J706 rating

HMW 7.8 PHT – ST Winch

HMW 7.8 PHT – ST Winch Technical Drawing
