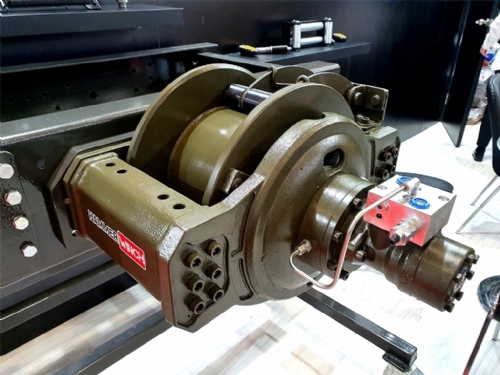

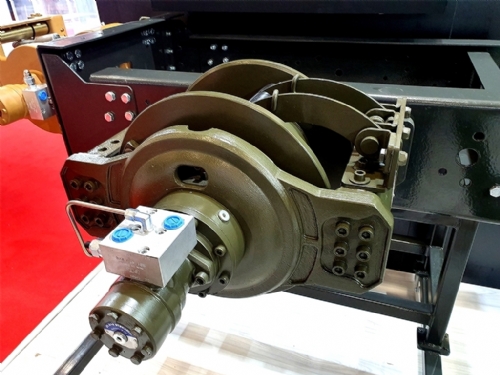

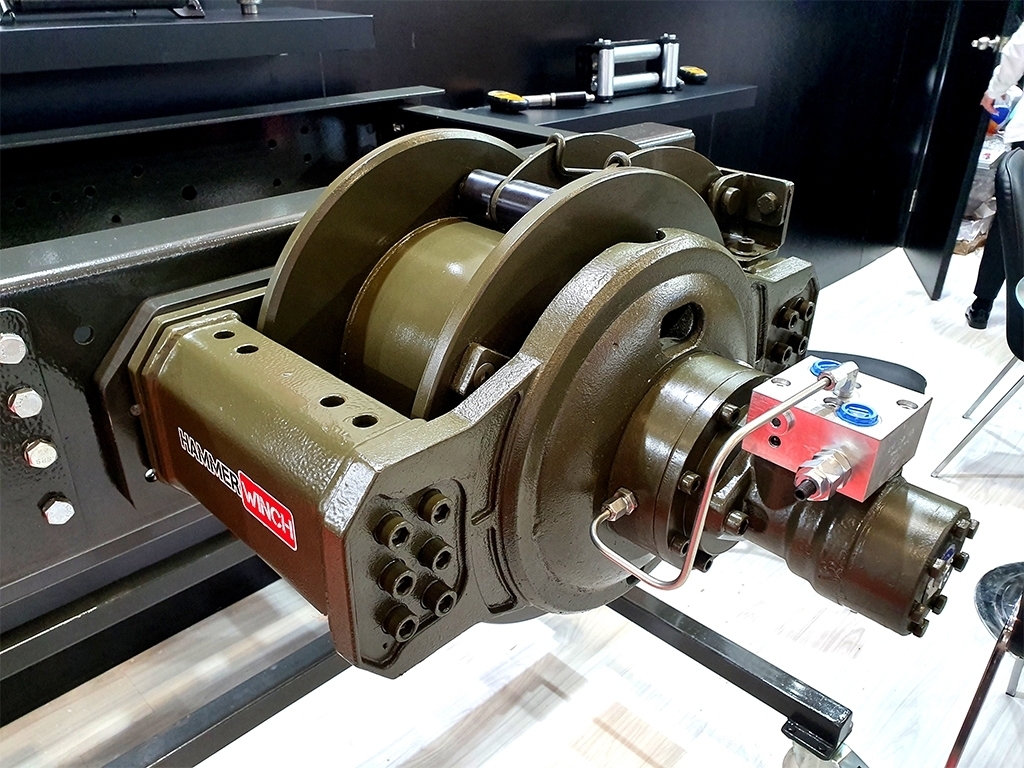

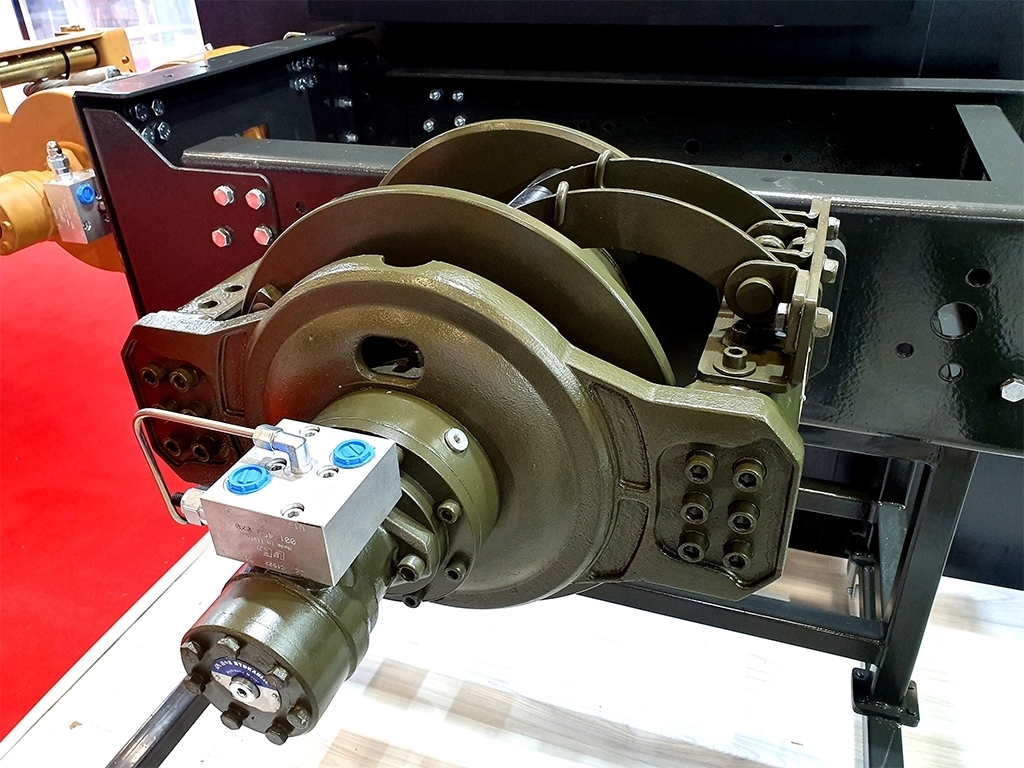

HMW 12.0 SDW Winch

HMW 12.0 SDW Winch

HMW 12.0 SDW Winch ; Hammerwinch, a trusted name in the world of winches, continues to deliver exceptional products that meet the demands of professionals. Among their impressive lineup, the HMW 12.0 SDW Winch stands out as a powerful and reliable winching solution designed to handle the toughest tasks with ease. With its exceptional pulling capacity, durable construction, and advanced features, this winch is a game-changer in various industries and applications.Powerful Pulling Capacity:The HMW 12.0 SDW Winch is built to handle heavy loads effortlessly. With a pulling capacity of 12,000 kilograms, it tackles even the most demanding tasks with ease. Whether you’re involved in recovery operations, off-road adventures, or industrial applications, this winch is equipped to handle the challenges you face.

Robust and Durable Construction: Hammerwinch is known for its commitment to durability, and the HMW 12.0 SDW Winch is no exception. It is built with high-quality materials and precision engineering to withstand harsh conditions and heavy use. The winch’s rugged construction ensures longevity and reliability, making it suitable for professionals who require a winch capable of enduring demanding environments.

Standard

  • Roller Fairlead
  • Cable Tensioner
  • Manual Clutch

Hydraulic Inlets

  • G 1/2″

Mounting Bolts

  • 24 Pieces M14 8,8

General

Max. pulling capacity (kg/Ibs): 12000 kg (26452 Ibs)
Max. rope length (m/ft): 62 m (203.3 ft)
Max. rope length for EN (m/ft): 47.4 m (155.5 ft)
Recommended wire rope (mm/in): 16 mm (7/11″) 2160 Mpa
Hydromotor (cc/in³): 200 cc (9.6 in³)
Max. pump flow (L/min-g/min): 60 L/min ( 15.8 g/min)
Gear ratio: 34.5:1
Oil types and capactiy: 85 W 90 – 2 L
Max. working pressure (bar/psi): 200 bar (2900 psi)
Winch (kg/Ibs): 199 kg (438.6 lbs)
Cable Tensioner (kg/Ibs): 7 kg (15,4 lbs)

HMW 12.0 SDW Manuel Clutch Shifter

HMW 12.0 SDW/P Air Clutch Shifter

Technical Features

Winch Features

Rope Winding Layer Pulling Capacity (kg/lbs) Rope Speed (m/min-ft/min) Rope Lenght (m/ft)
1 12000/26452 7.1/23.3 10.8/35.4
2 10925/24079 7.8/25.6 21.6/71
3 10025/22096 8.5/27.9 34.6/113.4
EN 4 9262/20414 9.2/30.2 47.4/155.5
5 8607/18971 9.9/32.5 62/203.3

Pulling Capacity kg/lb Rope Speed m/min-ft/min Rope Lenght m/ft

Technical Document

  • Extra reinforced steel cast body.
  • Lightweight and strong design, high rope capacity.
  • Negative-acting hydraulic brake holding reinforced.
  • Dynamics, strong hydraulic motor and high strength cast drum.
  • EN 14492-1 : 2006 Power driven winches supported.
  • CE Machinery Directive 2006/42/EC

HMW 12.0 SDW Winch

HMW 12.0 SDW Winch Technical Drawing
