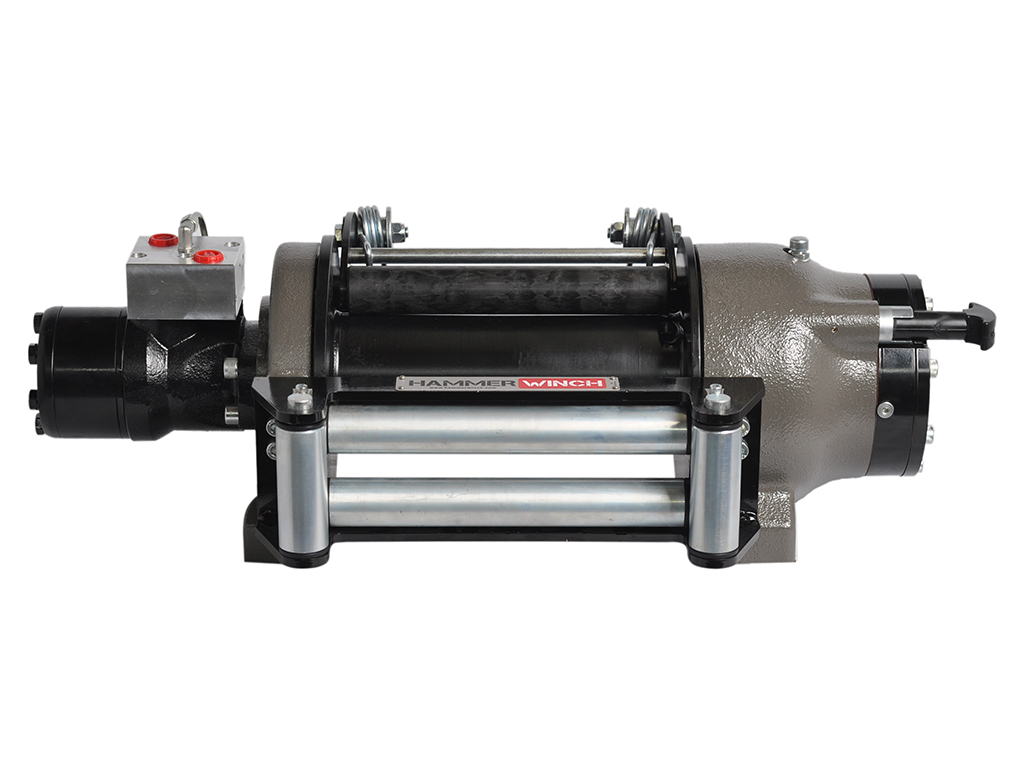

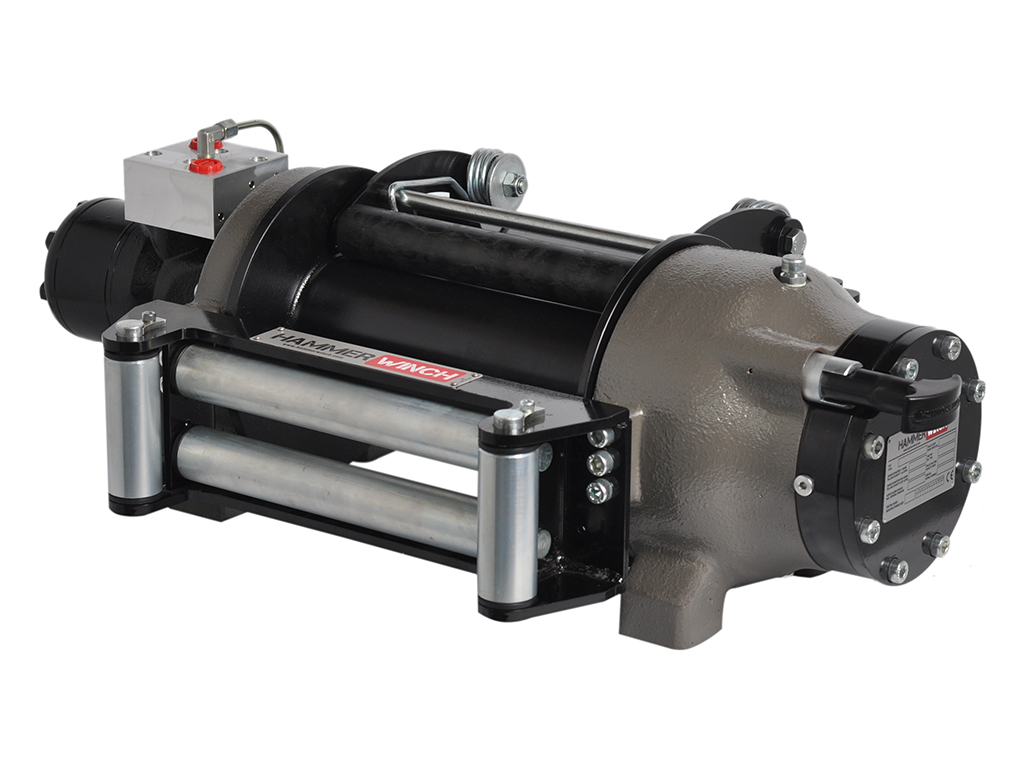

HMW 5.8 PHT – ST Winch

HMW 5.8 PHT – ST Winch

The HMW 5.8 PHT – ST Winch is a highly durable and efficient winch designed for heavy-duty applications. This winch offers advanced features and cutting-edge technology that make it the ideal solution for various industries. In this article, we will explore the technical features of the HMW 5.8 PHT – ST Winch in detail.

Firstly, let’s take a look at the capacity of this winch. The HMW 5.8 PHT – ST Winch has a maximum line pull of 5.8 metric tons (12,787 lbs), which makes it suitable for a wide range of applications. This winch can be used for lifting heavy loads, pulling vehicles out of mud or snow, and for many other tasks that require a strong and reliable winch.

Standard

  • Roller Fairlead
  • Cable Tensioner
  • Manual Clutch

Hydraulic Inlets

  • G 1/2″

Optional

  • Air Clutch
  • IP67 – IP 68

Mounting Bolts

  • 16 Pieces M12

General

Max. pulling capacity (kg/lbs): 5800 kg (12783 Ibs)
Max. rope length (m/ft): 48.6 m (159.4 ft)
Recommended wire rope (mm/in): 12mm (1/2”) 1960 Mpa
Hydromotor (cc/in³): 400 cc ( 24 in³)
Max. pump flow (L/min-g/min): 60 L/min (15.8 g/min)
Gear ratio: 5,2:1
Oil types and capactiy: 85 W 90 – 0,9 L
Max. working pressure (bar/psi): 160 bar (2320 psi)
Winch (kg/lbs): 90 kg (198.4 Ibs)
Roller Fairlead (kg/lbs): 9 kg
Cable Tensioner (kg/lbs): 4 kg (9 lbs)

HMW 5.8 PHT – ST Manuel Clutch Shifter

HMW 5.8 PHT – ST/P Air Clutch Shifter

Technical Features

Winch Features

Rope Winding Layer Pulling Capacity (kg/lbs) Rope Speed (m/min-ft/min) Rope Lenght (m/ft)
1 5800/12783 10/33 7.35/24.1
2 4927/10861 12/39 15.7/51.5
3 4283/9440 14/46 25.3/83
4 3788/8349 16/52 36/118
5 3395/7483 17/56 48.6/159.4

Pulling Capacity kg/lb Rope Speed m/min-ft/min Rope Lenght m/ft

Technical Document

  • Extra reinforced steel cast body through the heat treatment and industrial design
  • Light and robust design
  • 100% Holding negative-acting hydraulic brake system.
  • Standard pressure roller and roller fairlead.
  • Easy assembly, high rope capacity and high torque hydromotor
  • Standard manual rope unloading system
  • CE Machinery Directive 2006/42/EC
  • Meets SAE J706 rating

HMW 5.8 PHT – ST Winch

HMW 5.8 PHT – ST Winch Technical Drawing
