Winch

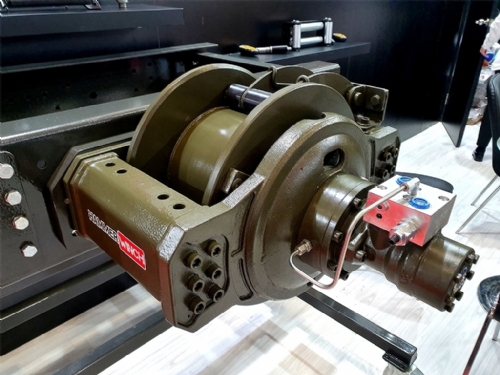

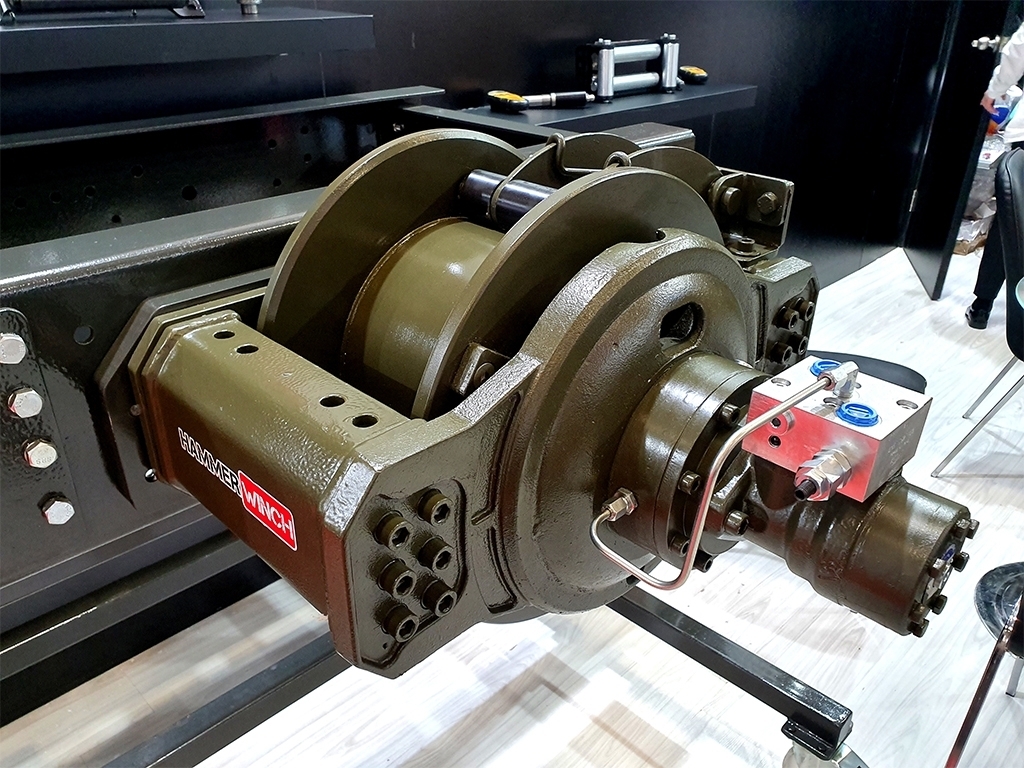

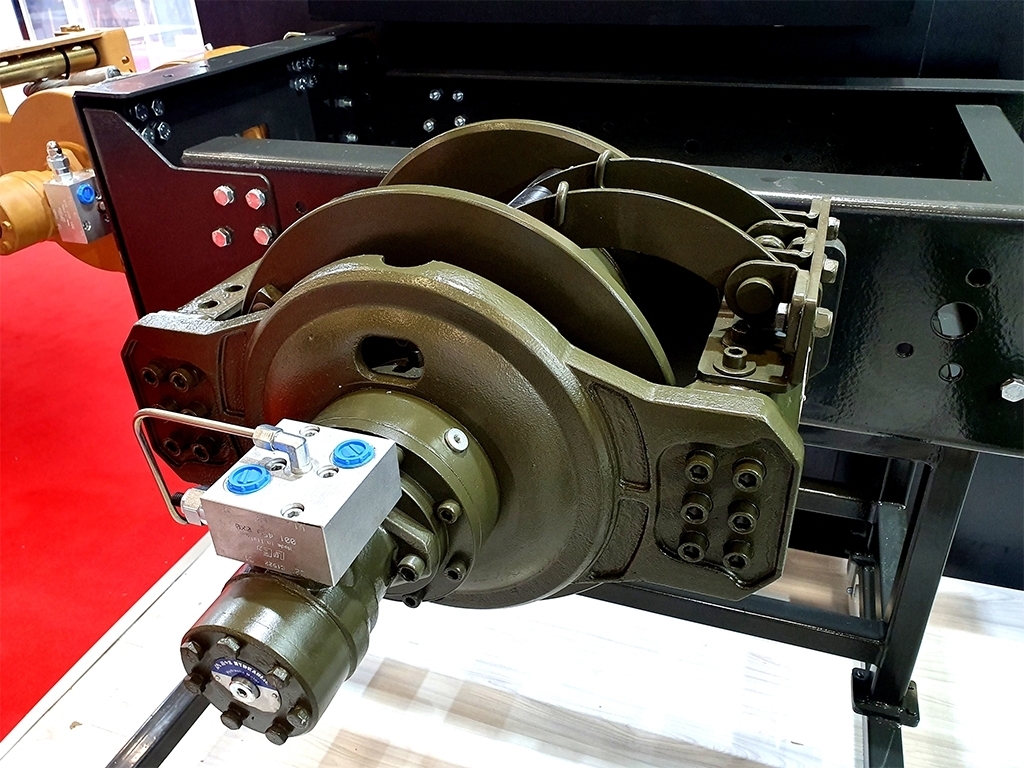

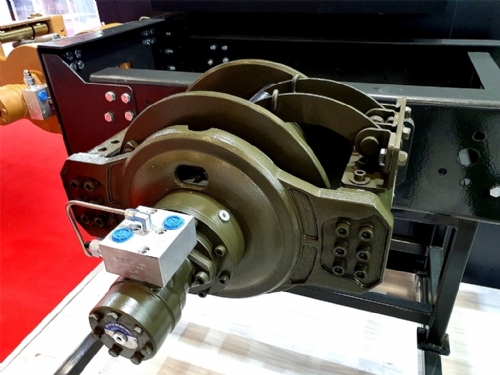

HMW 10.0 SDW Winch
EN Series
| Max. pulling capacity (kg/Ibs): | 10000 kg (22040 Ibs) |
| Max. rope length (m/ft): | 62 m (203.3 ft) |
| Max. rope length for EN (m/ft): | 47.4 m (155.5 ft) |
| Recommended wire rope (mm/in): | 16 mm (7/11") 2160 Mpa |
| Hydromotor (cc/in³): | 160 cc (9.6 in³) |
| Max. pump flow (L/min-g/min): | 60 L/min (15.8 g/min) |
| Gear ratio: | 34.5:1 |
| Oil types and capactiy: | 85 W 90 - 2 L |
| Max. working pressure (bar/psi): | 190 bar (2755 psi) |
| Winch (kg/Ibs): | 198 kg (436.4 lbs) |
| Cable Tensioner (kg/Ibs): | 7 kg (15,4 lbs) |
HMW 10.0 SDW Manuel Clutch Shifter
HMW 10.0 SDW/P Air Clutch Shifter
Winch Features
Rope Winding Layer
Pulling Capacity
kg/lbs
Rope Speed
m/min-ft/min
Rope Lenght
m/ft
1
10000/22040
8.9/29.2
10.8/35.4
2
9103/20063
9.8/32.1
21.6/71
3
8354/18412
10.6/34.8
34.6/113.4
EN 4
7718/17011
11.5/37.7
47.4/155.5
5
7172/15808
12.4/40.6
62/203.3
Pulling Capacity kg/lb Rope Speed m/min-ft/min Rope Lenght m/ft
- Extra reinforced steel cast body.
- Lightweight and strong design, high rope capacity.
- Negative-acting hydraulic brake holding reinforced.
- Dynamics, strong hydraulic motor and high strength cast drum.
- EN 14492-1 : 2006 Power driven winches supported.
- CE Machinery Directive 2006/42/EC
HMW 10.0 SDW Winch 2D/3D Design
Order Form
Standard
Cable Tensioner
Hydraulic Inlets
G 1/2"
Optional
Mounting Bolts
24 Pieces M14 8,8
