Winch

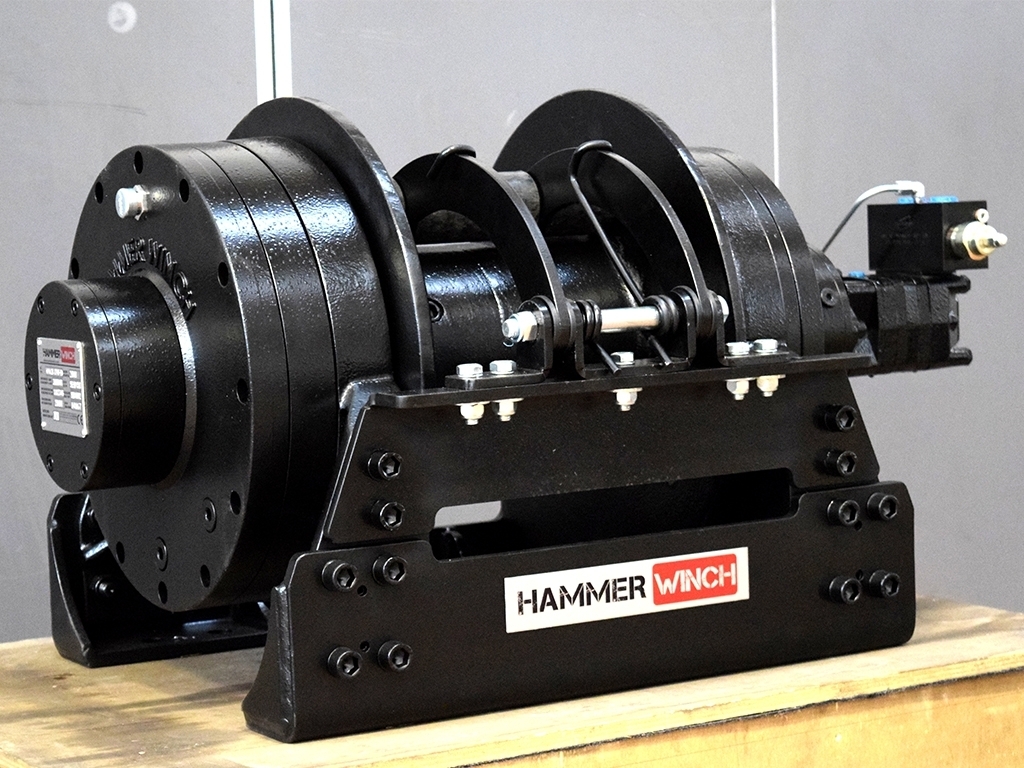

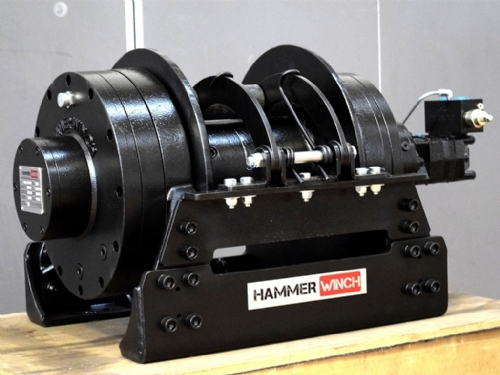

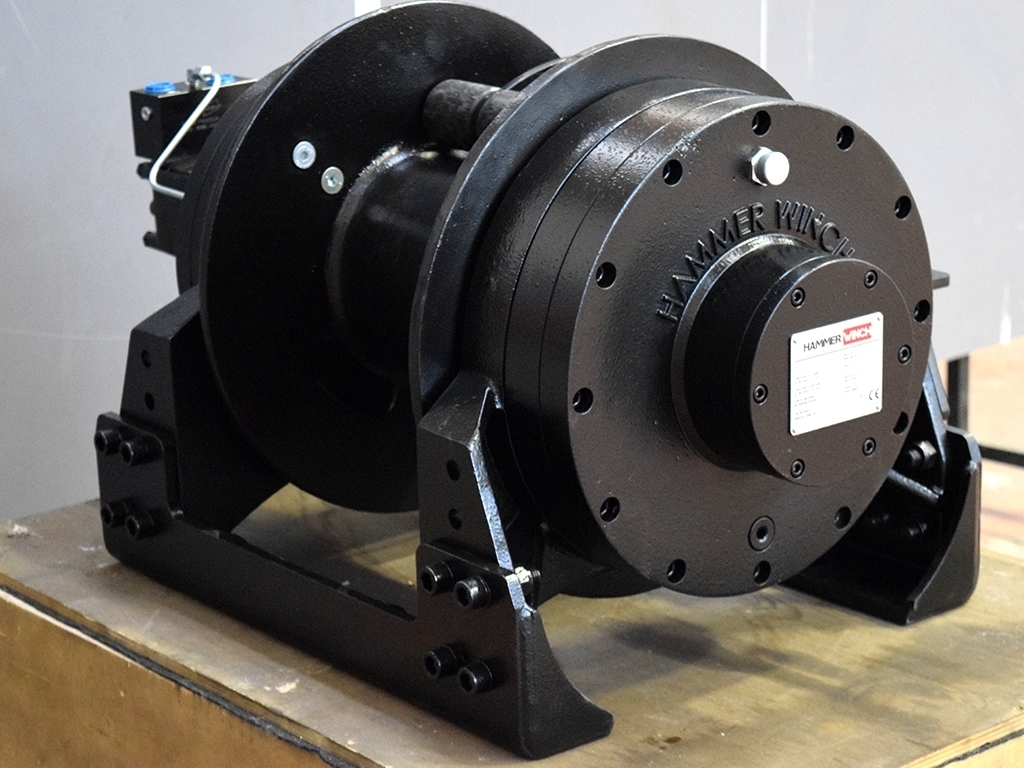

HMW 22.0 PHT - EN Winch
EN Series
| Max. pulling capacity (kg/Ibs): | 22.000 kg (48488 Ibs) |
| Max. rope length (m/ft): | 77.4 m (254 ft) |
| Max. rope length for EN (m/ft): | 60.8 m (199 ft) |
| Recommended wire rope (mm/in): | 22 mm (7/8”) 2160 Mpa Compact |
| Hydromotor (cc/in³): | 250 cc (15 in³) |
| Max. pump flow (L/min-gal/min): | 75 L/min (19.8 g/min) |
| Gear ratio: | 46:1 |
| Oil types and capactiy: | 85 W 140 - 1,5 L |
| Max. working pressure (bar/psi): | 170 bar (2465 psi) |
| Winch (kg/Ibs): | 345 kg (760.4 lbs) |
| Cable Tensioner (kg/Ibs): | 8 kg (17,6 lbs) |
HMW 22.0 PHT - EN Manuel Clutch Shifter
HMW 22.0 PHT - EN/P Air Clutch Shifter
Winch Features
Rope Winding Layer
Pulling Capacity
kg/lbs
Rope Speed
m/min-ft/min
Rope Lenght
m/ft
1
22000/48488
4.3/14.2
9.4/30.8
2
18743/41310
5/16.4
19.6/64.3
3
16326/35983
5.8/19
32/105
4
14461/31874
6.6/21.6
45.2/148
5 EN
12979/28606
7.3/23.9
60.8/199
6
11772/25947
8/26.2
77.4/254
Pulling Capacity kg/lb Rope Speed m/min-ft/min Rope Lenght m/ft
- Extra reinforced steel cast body through the heat treatment and industrial design
- Light and robust design.
- 100% Holding Negative-Acting Hydraulic brake system.
- Standard pneumatic rope unloading system.
- Easy assembly, compact design and high torque hydromotor.
- Two-stage planetary gear system.
- EN 14492-1 : 2006 Power Driven winches supported
- CE Machinery Directive 2006/42/EC
HMW 22.0 PHT - EN Winch 2D/3D Design
Order Form
Standard
Cable Tensioner
Air Clutch
Hydraulic Inlets
G 3/4"
Optional
IP67 - IP 68
Pneumatic Cable Tensioner
Roller Fairlead
Mounting Bolts
8 Pieces M22 8,8
